PIK-DM3-KL Profiler Integration Kit – Standalone Scanning System for Keyence LJ Cameras

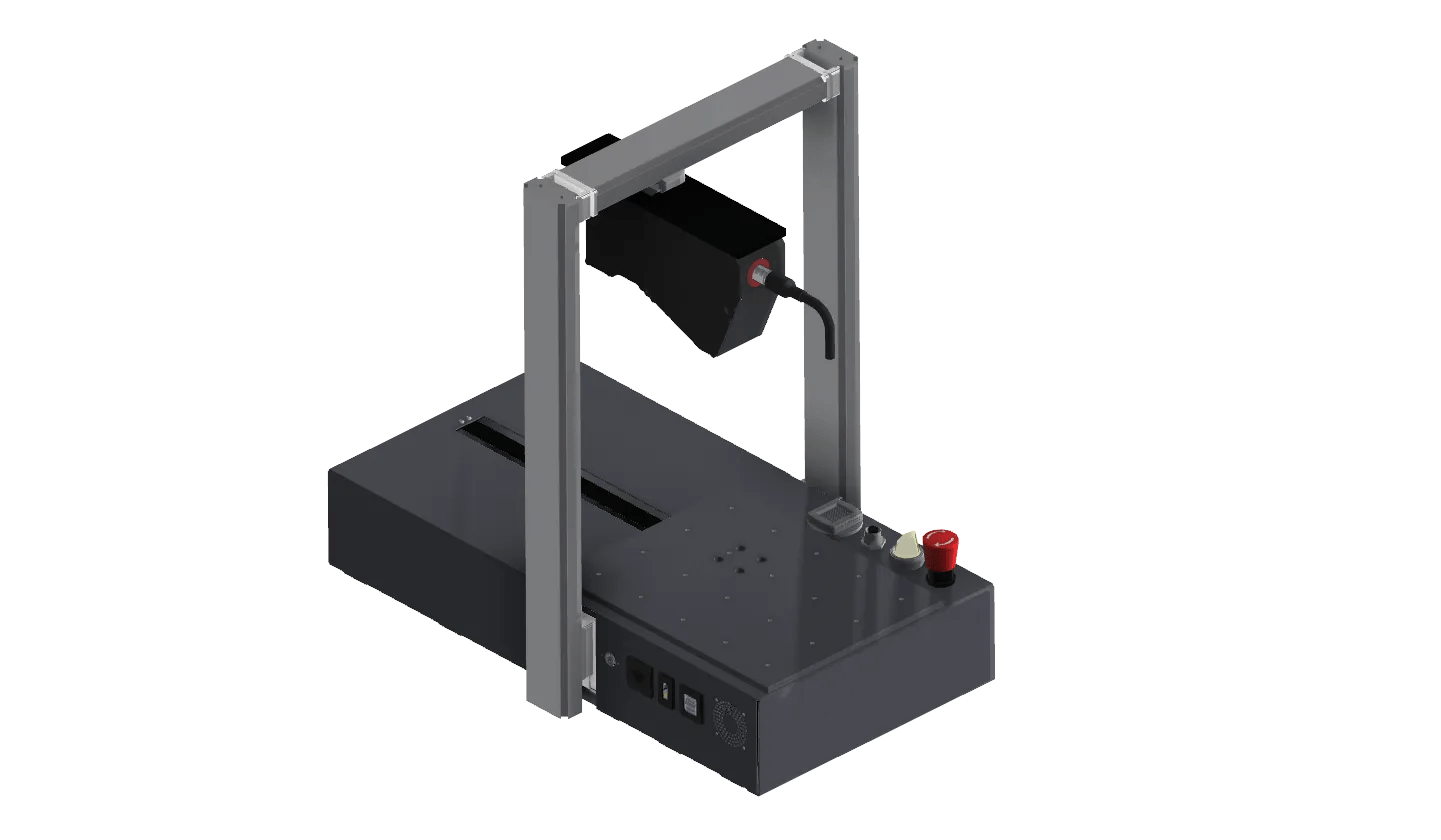

PIK-DM3-KL Base System Specifications

Dimensions

530mm (L) x 340mm (W) x 535mm (H)

Actuator Stroke

300mm total stroke, 295mm usable

Carrier Plate

250mm x 250mm

M5 threaded holes at 50mm x 50mm spacing

Power

System Power: 24VDC, 5A input External

Power Supply:

- Input: 120/230VAC, 1.85/1A

- Output: 24VDC, 5A

System Interface

Power switch

Motion stop button

5V Encoder output on M12 connection

HDMI output for monitor

USB connection for mouse and keyboard

RJ45 Ethernet interface

24" Monitor and wireless keyboard/mouse combo included

PIK-DM3-KL Keyence Sensor Compatibility

LJ-V Series

LJ-X Series

7020

7020K*

7060

7060K*

7080

7200'

7300'

8020*

8060*

8080

8200'

8300'

' Reduced range, full range requires optional Height Extension Kit (PIK-DM3-H)

* Specular inspection requires optional Rotated Inspection Kit (PIK-DM3-R)

Optional Kits

Part Number

Kit

Description

PIK-DM3-H

Height Extension

295mm height extension kit allows for full range inspections with compatible Keyence cameras

PIK-DM3-R

Rotated Inspection

Adds mounting kit for rotation about the sensor X-axis or Y-axis for either rotated or specular inspections

PIK-DM3-A

Alignment Target

AAG-A5S Alignment Target for system alignment with mounting socket fixture and storage case

PIK-DM3-CV

Cover for PIK-DM3 Modules

Adds a cover to the module for safety and dust control
