Ardent Automation part number: PIK-DM3-G2
Manufacturer: Ardent Automation
Description: Profiler Integration Kit – Standalone Scanning System for Gocator
Overview:
- External brick Power Supply – 85-264VAC input, 24VDC output
- Ethernet – RJ45 gigabit connection for system control via web interface
- Built-in PC for local control with HDMI output for included monitor and USB input for mouse/keyboard

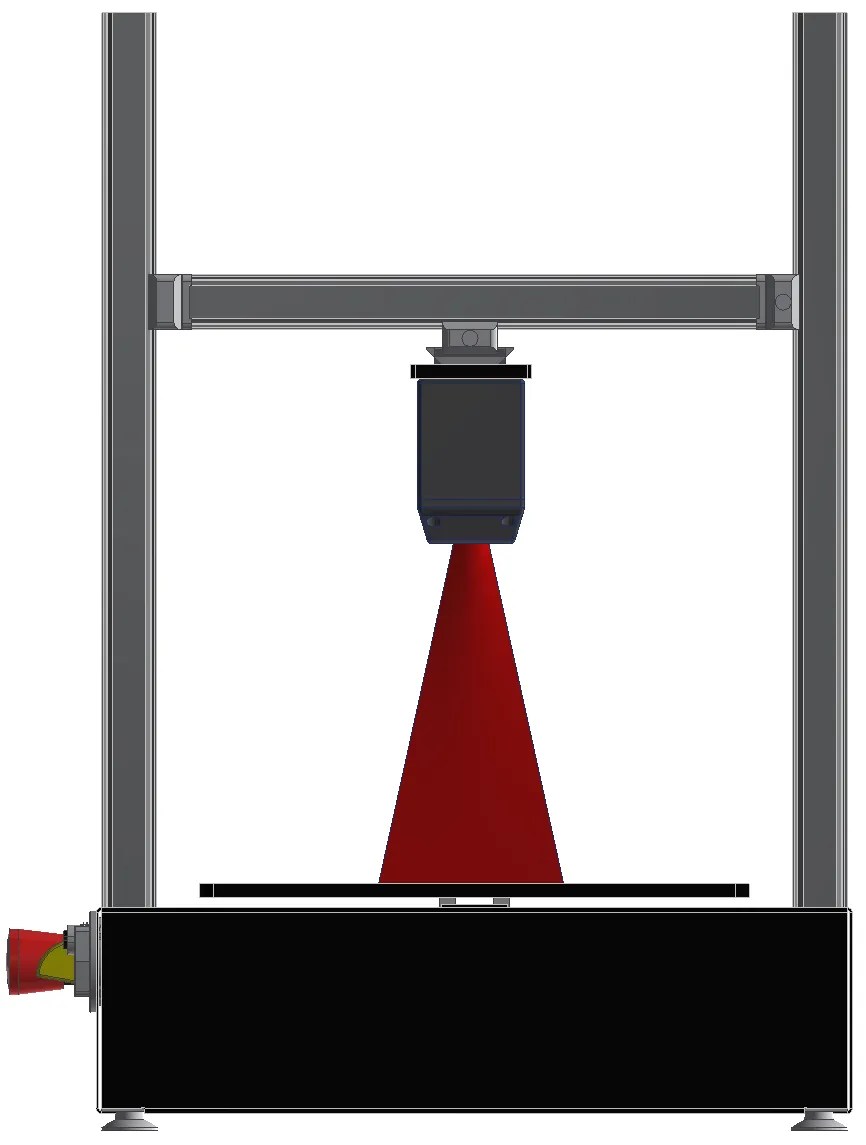

- Orthogonal X and Z adjustment of sensor location via dovetail connection
- Gocator cable connections built-in
Base System Specifications:
PIK-DM3-G2 Base System Specifications | |
Dimensions | 530mm (L) x 340mm (W) x 535mm (H) |
Actuator Stroke | 300mm total stroke, 295mm usable |
Carrier Plate | 250mm x 250mm M5 threaded holes at 50mm x 50mm spacing |
Power | System Power: 24VDC, 5A input External Power Supply: - Input: 120/230VAC, 1.85/1A - Output: 24VDC, 5A |

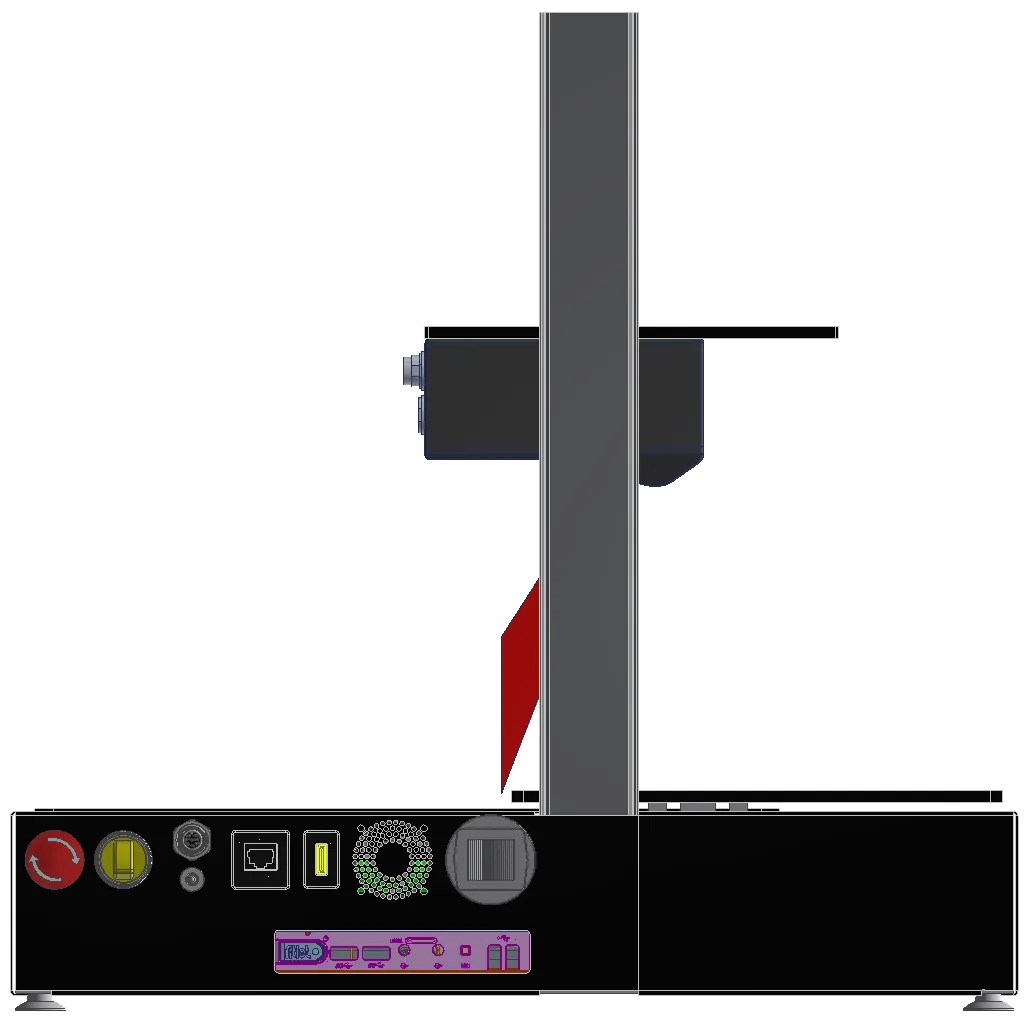

System Interface | Power switch Motion stop button 5V Encoder output on M12 connection HDMI output for monitor USB connection for mouse and keyboard RJ45 Ethernet interface Power/Ethernet and I/O cables integrated into base 24" Monitor and wireless keyboard/mouse combo included |
Base System Sensor Compatibility:
PIK-DM3-G2 Gocator Sensor Compatibility | ||||
2100 Series | 2300 Series | 2400 Series | 2500 Series | 2600 Series |
2120 2130 2140' | 2320 2330 2340' | 2410* 2420* 2430 2440' | 2510* 2512* 2520* 2522* 2530* 2540' | 2610* 2618* 2629 2630 2640' |
' Reduced range, full range requires Height Extension Kit (PIK-DM3-H) * Specular inspection requires Rotated Inspection Kit (PIK-DM3-R) | ||||
Optional Kits:
Optional Kits | ||
Part Number | Kit | Description |
Height Extension | 295mm height extension kit allows for full range inspections with all Gocator 2X40 sensors | |
Rotated Inspection | Adds mounting kit for rotation about the sensor X-axis or Y-axis for either rotated or specular inspections | |
Alignment Target | AAG-A5S Alignment Target for system alignment with mounting socket fixture and storage case | |
Cover for PIK-DM3 Modules | Adds a cover to the module for safety and dust control | |
Gocator Interface:
- Gocator web interface embedded into system webpage
- Can be connected to an accelerator for extended Gocator capability
- Control motion and scanning from single interface
Motion Control Interface:
- Quickly set position, speed, and movement settings
- Monitor speed, axis position, drive power, and input status
- Gives the user full control of the motion parameters to optimize scan setup
Saved Settings:
- Easily adjust and save motion settings for use with particular parts or fixtures for quick recall
Alarm Table:
- Lists all alarms from the drive for troubleshooting and alarm resolution
Need custom programming for your specific parts? We can do that! Please leave a note when submitting your quote and we can work with you to provide solutions.
Financing options available – Contact Us!
For more information on our products, visit our Shop Now!
For more information on LMI3D Gocators visit lmi3d.com
For CAD files and Data Sheets, visit Downloads
